Zero Touch Activation

Connection Request

HTTP Session Initiation - Basic Authentication

HTTP Session Initiation - Digest Authentication

HTTP Session Initiation - Session Cookie Validation

CWMP Session Initiation - Bootstrap

CWMP Session Initiation - Periodic Inform

CWMP Session Initiation - Schedule Inform

Get RPC Methods

Get Parameter Names - Complete Path

Get Parameter Names - Partial Path

Set Parameter Values - Complete Path

Set Parameter Values - Partial Path

Add Object

Delete Object

Reboot

Factory Reset

Get Attribute Values

Set Attribute Values

Download FW - No ACS Specified Delay - HTTP Basic Auth

Download FW - No ACS Specified Delay - HTTP Digest Auth

Download FW - No ACS Specified Delay - HTTPS Basic Auth

Download FW - No ACS Specified Delay - HTTPS Digest Auth

Download FW - ACS Specified Delay - HTTP Basic Auth

Download FW - ACS Specified Delay - HTTP Digest Auth

Download FW - ACS Specified Delay - HTTPS Basic Auth

Download FW - ACS Specified Delay - HTTPS Digest Auth

Upload Config

SSL

TR111-part1

TR111-part2 (STUN)

TR104

Device.DeviceSummary

string(1024)

The DeviceSummary parameter is defined to provide an explicit summary of the top-level data model of
the device, including version and profile information. This parameter MAY be used by an ACS to discover
the nature of the device and the ACS’s compatibility with specific objects supported by the device.

Device.DeviceInfo.Manufacturer

string(64)

The manufacturer of the CPE (human readable
string).

Device.DeviceInfo.ManufacturerOUI

string(6)

Organizationally unique identifier of the device manufacturer. Represented as a six hexadecimal-digit value using all upper-case letters and including any leading zeros.

The value MUST be a valid OUI as defined in [9].

Device.DeviceInfo.ModelName

string(64)

Model name of the CPE (human readable string).

Device.DeviceInfo.SerialNumber

string(64)

Serial number of the CPE.

Device.DeviceInfo.HardwareVersion

string(64)

A string identifying the particular CPE model and version

Device.DeviceInfo.SoftwareVersion

string(64)

A string identifying the software version currently installed in the CPE. To allow version comparisons, this element
SHOULD be in the form of dot-delimited integers, where each successive integer represents a more minor category of variation. For example, 3.0.21where the components mean:
Major.Minor.Build.

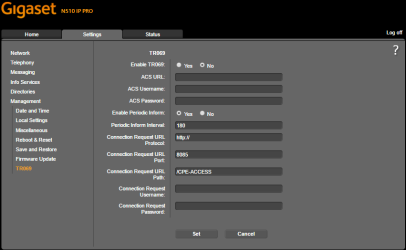

Device.ManagementServer.URL

string(256)

URL for the CPE to connect to the ACS using the CPE WAN Management Protocol.
This parameter MUST be in the form of a valid HTTP or HTTPS URL [5]. An HTTPS URL indicates that the ACS supports SSL.
The “host” portion of this URL is used by the CPE for validating the certificate from the ACS when using certificate-based authentication.

Device.ManagementServer.Username

string(256)

Username used to authenticate the CPE when making a connection to the ACS using the CPE WAN Management Protocol.
This username is used only for HTTP-based authentication of the CPE.

Device.ManagementServer.Password

string(256)

Password used to authenticate the CPE when making a connection to the ACS using the CPE WAN Management Protocol.
This password is used only for HTTP-based authentication of the CPE.
When read, this parameter returns an empty string, regardless of the actual value.

Device.ManagementServer.PeriodicInformEnable

boolean

Whether or not the CPE must periodically send CPE information to Server using the Inform method call.

Device.ManagementServer.PeriodicInformInterval

unsignedInt

The duration in seconds of the interval for which the CPE MUST attempt to connect with the ACS and call the Inform method if PeriodicInform-Enable is true.

Device.ManagementServer.ParameterKey

string(32)

The value of the ParameterKey argument from the most recent SetParameterValues, AddObject, or DeleteObject method call from the Server. If there have been no such calls, this value is empty.

Device.ManagementServer.ConnectionRequestURL

string(256)

HTTP URL for an ACS to make a Connection Request notification to the CPE.
In the form:
http://host:port/path
The “host” portion of the URL MAY be the IP address for the management interface of the CPE in lieu of a host name.

Device.ManagementServer.ConnectionRequestUsername

string(256)

Username used to authenticate an ACS making a Connection Request to the CPE.

Device.ManagementServer.ConnectionRequestPassword

string(256)

Password used to authenticate an ACS making a Connection Request to the CPE.
When read, this parameter returns an empty string, regardless of the actual value.

Device.LAN.IPAddress

string

The current IP address assigned to this interface.The ability to modify this parameter is optional, and this parameter cannot be modified if the AddressingType is “DHCP”.

Device.GatewayInfo.ManufacturerOUI

string(6)

Organizationally unique identifier of the associated Internet Gateway Device. An empty string indicates that there is no associated Internet Gateway Device that has been detected.

Device.GatewayInfo.ProductClass

string(64)

Identifier of the product class of the associated Internet Gateway Device. An empty string indicates either that there is no associated Internet Gateway Device that has been detected, or the Internet
Gateway Device does not support the use of the product-class parameter.

Device.GatewayInfo.SerialNumber

string(64)

Serial number of the associated Internet Gateway Device. An empty string indicates that there is no associated Internet Gateway Device that has been detected.

Device.Services.

Device.Services.VoiceService.{i}.VoiceProfileNumberOfEntries

unsignedInt

Number of instances of VoiceProfile

Device.Services.VoiceService.{i}.VoiceProfile.{i}.Enable

string

Enables or disables all lines in this profile, or places it into a quiescent state. Enumeration of:
“Disabled”
“Quiescent”
“Enabled”
On creation, a profile MUST be in the Disabled state.
In the Quiescent state, in-progress sessions remain intact, but no new sessions are allowed.
Support for the Quiescent state in a CPE is optional. If this parameter is set to “Quiescent” in a CPE that does not support the Quiescent state, it MUST treat it the same as the Disabled state.

Device.Services.VoiceService.{i}.VoiceProfile.{i}.NumberOfLines

unsignedInt

Number of instances of Line within this VoiceProfile.
Applicable only for a VoIP endpoint.

Device.Services.VoiceService.{i}.VoiceProfile.{i}.Name

string(64)

Human-readable string to identify the profile instance.

Device.Services.VoiceService.{i}.VoiceProfile.{i}.STUNEnable

boolean

Enable or disable use of STUN to allow operation through NAT. Note: enabling STUN is to be interpreted as enabling the use of STUN for discovery, not use as a keep-alive mechanism.

Device.Services.VoiceService.{i}.VoiceProfile.{i}.STUNServer

string(256)

Domain name or IP address of the STUN server.

Device.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.Enable

string

Enables or disables this line, or places it into a
quiescent state. Enumeration of:
“Disabled”
“Quiescent”
“Enabled”
On creation, a line MUST be in the Disabled state.
In the Quiescent state, in-progress sessions remain intact, but no new sessions are allowed.
Support for the Quiescent state in a CPE isoptional.
If this parameter is set to “Quiescent” in a CPE that does not support the Quiescent state, it MUST treat it the same as the Disabled state (and indicate Disabled in the Status parameter).

Device.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.Status

string

Indicates the status of this line. Enumeration of:
“Disabled"
“Initializing”
“Error”
“Up”

Device.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.CallerIDName

string(256)

String used to identify the caller.

Device.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.SIP.AuthUserName

string(128)

Username used to authenticate the connection to the server.

Device.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.SIP.AuthPassword

string(128)

Password used to authenticate the connection to the server. When read, this parameter returns an empty string, regardless of the actual value.

Device.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.SIP.URI

URI by which the user agent will identify itself for this line.
If empty, the actual URI used in the SIP signaling SHOULD be automatically formed by the CPE as:
“sip:UserName@Domain”
Where UserName is username given for this line (VoiceService.{i}.VoiceProfile.{i}.Line.{i}.SIP.AuthUserName), and Domain is the domain given for
this profile (VoiceService.{i}.VoiceProfile.{i}.SIP.UserAgentDomain). If this domain parameter is empty, then the IP address of the CPE SHOULD be used for the domain.
If URI is non-empty, but is a SIP or SIPS URI that contains no “@” character, then the actual URI used in the SIP signaling SHOULD be automatically formed by the CPE by appending
this parameter with an “@” character followed by the domain given for this profile (VoiceService.{i}.VoiceProfile.{i}.SIP.UserAgentDomain). If this domain parameter is empty, then the IP address of the CPE SHOULD be used for the domain.

Device.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.ProxyServer

string(256)

Host name or IP address of the SIP proxy server.
All SIP signaling traffic MUST be sent to the host indicated by this parameter and the port indicated by the ProxyServerPort parameter unless OutboundProxy parameter is non-empty or a different route was discovered during normal operations SIP routing operation. Regardless of which host the traffic gets sent to (the ProxyServer or the OutboundProxy), the value of this parameter MUST be used to derive the URI placed into the SIP Route header field of all requests originated by this end-point unless a

Device.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.ProxyServerPort

unsignedInt
[0:65535]

Destination port to be used in connecting to the SIP server.

Device.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.RegistrarServer

string(256)

Host name or IP address of the SIP registrar server.
If this parameter is empty, the CPE MUST obtain all of the registrar server configuration information, including host name or IP address, port, and
transport protocol, from the corresponding ProxyServer parameters (ProxyServer, ProxyServerPort, and ProxyServerTransport), ignoring all of the registrar server parameters (RegistrarServer, RegistrarServerPort and RegistrarServerTransport).

Device.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.RegistrarServerPort

unsignedInt
[0:65535]

Destination port to be used in connecting to the SIP registrar server.
If the RegistrarServer parameter is empty, the CPE MUST obtain all of the registrar server configuration information, including host name or IP address, port, and transport protocol, from the
corresponding ProxyServer parameters (ProxyServer, ProxyServerPort, and ProxyServerTransport), ignoring all of the registrar server parameters (RegistrarServer, RegistrarServerPort
and RegistrarServerTransport).

Device.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.OutboundProxy

string(256)

Host name or IP address of the outbound proxy.
If a non-empty value is specified, the SIP endpoint MUST send all SIP traffic (requests and responses) to the host indicated by this parameter and the port indicated by theOutboundProxyPort parameter. This MUST
be done regardless of the routes discovered using normal SIP operations, including use of Route headers initialized from Service-Route and Record-Route headers previously received. The OutboundProxy value is NOT used to generate the URI placed into the Route header of any requests.

Device.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.OutboundProxyPort

unsignedInt
[0:65535]

Destination port to be used in connecting to the outbound proxy. This parameter MUST be ignored unless the value of the OutboundProxy parameter in this object is non-empty.

Device.Services.VoiceService.{i}.VoiceProfile. {i}.SIP.RegisterRetryInterval

unsignedInt
[0:65535]

Registration Refresh Time.

Device.Services.VoiceService.1.VoiceProfile.1.Enable

Device.Services.VoiceService.1.VoiceProfile.1.Line.1.CallingFeatures.CallerIDName

BS_IP_Data1.aucS_SIP_DISPLAYNAME

Display name

Device.Services.VoiceService.1.VoiceProfile.1.Line.1.SIP.AuthUserName

BS_IP_Data3.aucS_SIP_LOGIN_ID

Authentication name

Device.Services.VoiceService.1.VoiceProfile.1.Line.1.SIP.AuthPassword

BS_IP_Data1.aucS_SIP_PASSWORD

Authentication password

Device.Services.VoiceService.1.VoiceProfile.1.Line.1.SIP.URI

BS_IP_Data1.aucS_SIP_USER_ID

BS_IP_Data1.aucS_SIP_DOMAIN

Username

Domain

Device.Services.VoiceService.1.VoiceProfile.1.SIP.ProxyServer

BS_IP_Data1.aucS_SIP_SERVER

Proxy server address

Device.Services.VoiceService.1.VoiceProfile.1.SIP.ProxyServerPort

BS_IP_Data1.uiI_SIP_SERVER_PORT

Proxy server port

Device.Services.VoiceService.1.VoiceProfile.1.SIP.RegistrarServer

BS_IP_Data1.aucS_SIP_REGISTRAR

Registration server

Device.Services.VoiceService.1.VoiceProfile.1.SIP.RegistrarServerPort

BS_IP_Data1.uiI_SIP_REGISTRAR_PORT

Registration server port

Device.Services.VoiceService.1.VoiceProfile.1.STUNEnable

BS_IP_Data1.ucB_SIP_USE_STUN

STUN enabled

Device.Services.VoiceService.1.VoiceProfile.1.STUNServer

BS_IP_Data1.aucS_STUN_SERVER

STUN server address

Device.Services.VoiceService.1.VoiceProfile.1.SIP.OutboundProxy

BS_IP_Data1.aucS_OUTBOUND_PROXY

Outbound server address

Device.Services.VoiceService.1.VoiceProfile.1.SIP.OutboundProxyPort

BS_IP_Data1.uiI_OUTBOUND_PROXY_PORT

Outbound proxy port

Device.Services.VoiceService.1.VoiceProfile.2.Enable

Device.Services.VoiceService.1.VoiceProfile.2.Line.1.CallingFeatures.CallerIDName

BS_IP_Data1.aucS_SIP_DISPLAYNAME_2

Display name

Device.Services.VoiceService.1.VoiceProfile.2.Line.1.SIP.AuthUserName

BS_IP_Data3.aucS_SIP_LOGIN_ID_2

Authentication name

Device.Services.VoiceService.1.VoiceProfile.2.Line.1.SIP.AuthPassword

BS_IP_Data1.aucS_SIP_PASSWORD_2

Authentication password

Device.Services.VoiceService.1.VoiceProfile.2.Line.1.SIP.URI

BS_IP_Data1.aucS_SIP_USER_ID_2

BS_IP_Data1.aucS_SIP_DOMAIN_2

Username

Domain

Device.Services.VoiceService.1.VoiceProfile.2.SIP.ProxyServer

BS_IP_Data1.aucS_SIP_SERVER_2

Proxy server address

Device.Services.VoiceService.1.VoiceProfile.2.SIP.ProxyServerPort

BS_IP_Data1.uiI_SIP_SERVER_PORT_2

Proxy server port

Device.Services.VoiceService.1.VoiceProfile.2.SIP.RegistrarServer

BS_IP_Data1.aucS_SIP_REGISTRAR_2

Registration server

Device.Services.VoiceService.1.VoiceProfile.2.SIP.RegistrarServerPort

BS_IP_Data1.uiI_SIP_REGISTRAR_PORT_2

Registration server port

Device.Services.VoiceService.1.VoiceProfile.2.STUNEnable

BS_IP_Data1.ucB_SIP_USE_STUN_2

STUN enabled

Device.Services.VoiceService.1.VoiceProfile.2.STUNServer

BS_IP_Data1.aucS_STUN_SERVER_2

STUN server address

Device.Services.VoiceService.1.VoiceProfile.2.SIP.OutboundProxy

BS_IP_Data1.aucS_OUTBOUND_PROXY_2

Outbound server address

Device.Services.VoiceService.1.VoiceProfile.2.SIP.OutboundProxyPort

BS_IP_Data1.uiI_OUTBOUND_PROXY_PORT_2

Outbound proxy port
