Introduction

The Gigaset Remote Access Protocol (RAP 2.1) is available in the:

  • N510
  • N720
  • N870/N670/N610

Via Long-press on the (Right) Softkey you can select the menu PBX.

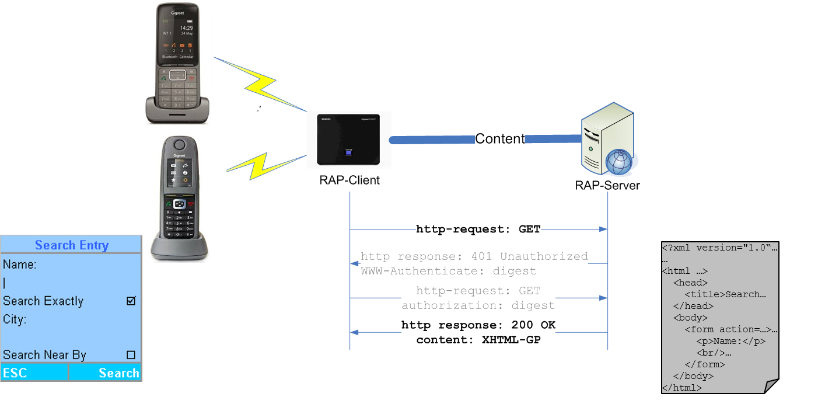

When pressing the Softkey PBX, it will contact the RAP server and shows the content on the display of the Handset. You can create your own Content.


Concept based on XHTML-MP

RAP Version

Description

Example

RAP 1.0

  • Info's on IDLE screen
  • Plain text


RAP 1.1

  • Pictograms


RAP 1.2

  • Icons
    (Gigaset Bitmaps)


RAP 2.0

  • Active Browsing
  • Navigation through Lists/Menus


  • Input forms
  • Editors, Check boxes, Radio buttons


RAP 2.2

  • Telephony Functions
  • Make Call, Add to phone-book


RAP 3.0

  • Graphics


RAP 4.0

  • Java Script


The Gigaset Remote Access Protocol (RAP)


Supported XHTML Elements

Elements


RAP 1

RAP 2

Structure Elements

✅️

✅️

✅️

✅️


✅️

✅️

✅️

Text Elements

✅️

✅️

✅️

✅️

Hypertext

✅️

✅️

Meta information

✅️

✅️

List


✅️



✅️

Basic Forms


✅️


✅️


✅️


✅️


N720 Provisioning parameters

Parameter

Description

Example

BS_IP_Data.ucB_ADD_SIPID_TO_HTTP_REQ

Add SIP ID to the HTTP Request

0 = GET /xmlInterface/menu/?lang=3&tz=60&mac=7C2F8052A48B&handsetid=02B6EC8AA5&provid=1 HTTP/1.1\r\n

1 = GET /xmlInterface/menu/?lang=3&tz=60&mac=7C2F8052A48B&handsetid=02B6EC8AA5&sipid=1014&provid=1 HTTP/1.1\r\n

BS_RAP.astRAPServices[1].ActivateService



BS_RAP.astRAPServices[2].ServerURL[%]



BS_RAP.astRAPServices[2].UseSIPCredentials



<!-- RAP Info Services -->
<SYMB_ITEM ID="BS_RAP.astRAPServices[3].ActivateService" class="symb_item" value="1"/>
<SYMB_ITEM ID="BS_RAP.astRAPServices[3].UseSIPCredentials" class="symb_item" value="1"/>
<SYMB_ITEM ID="BS_RAP.astRAPServices[3].ServerURL[%]" class="symb_item" value='"http://192.168.178.200/Web/xmlInterface/menu/"'/>
<SYMB_ITEM ID="BS_RAP.astRAPServices[2].ActivateService" class="symb_item" value="1"/>
<SYMB_ITEM ID="BS_RAP.astRAPServices[2].UseSIPCredentials" class="symb_item" value="0"/>
<SYMB_ITEM ID="BS_RAP.astRAPServices[2].ServerURL[%]" class="symb_item" value='"http://192.168.178.200/Web/xmlInterface/menu/"'/>
<SYMB_ITEM ID="BS_RAP.astRAPServices[1].ActivateService" class="symb_item" value="1"/>
<SYMB_ITEM ID="BS_IP_Data.ucB_ADD_SIPID_TO_HTTP_REQ" class="symb_item" value="0x0"/>


URL Parameters

Parameter


lang

Defines the display language as specified in the handset settings

tz

Defines the time zone providing time offset to UTC (in minutes with daylight saving corrections). Offset can be positive or negative value.
coding: -300 for negative values or
coding: 60 for positive values.

mac

The MAC address of the N720 DECT manager

handsetid

The handset ID (IPUI) is used to identify the handset that currently requests the XHTML pages and can be used for personalization issues.

sipid

The SIP ID of the user


Display Language

Value

Meaning

Value

Meaning

0

Undefined

20

Brasilien Portuguese

1

US

21

Numeric

2

German

22

Slovakian

3

English International

23

Russian[1]

4

Spanish

24

Greek1

5

Portuguese

25

Hungarian

6

Scandinavia

26

Croatian

7

Italian

27

Slovenian

8

Greek

28

Romanian

9

French

29

Serbian

10

Dutch

30

Bulgarian

11

Norwegian

31

Hebrew1

12

Danish

32

Chinese

13

Swedish

33

Arabic1

14

Finnish

34

Persian1

15

Czech

35

Turkish1

16

Turkish

36

Catalan

17

Polish

37

Bosnian

18

Canadian French

38

Ukrainian1

19

Mexican Spanish




[1] In this mode only ASCII characters are supported
