N870E

Hardware

N870 Multicell system with N870 / N870E:

• N870E hardware can be switched to the same roles like N870: Integrator / DECT Manager / DECT Base
• N870 and N870E can be mixed in multicell installations
• Up to 250 users / SIP accounts / DECT handsets
• 1 to 60 base stations
• Up to 10 simultaneous G.711 calls per base (8 G.729 Calls or 5 G.722 Calls)
• Seamless handover and roaming
• Ethernet RJ45 10/100 Mbps
• Integrated power over Ethernet
• Wall mountable

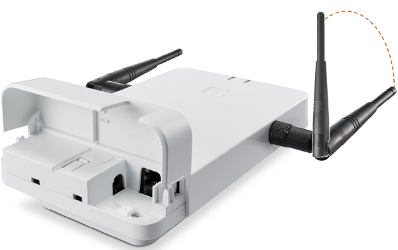

External Antennas (N870E with E=External)

• 2 external antennas in delivery scope
• The external antenna position can be changed to improve the DECT transmission
• 2 TNC connectors for mounting of 3rd party antennas

Software:

Software (same as in N870)

• Up to 60 parallel calls per N870 Multicell system
• Exceptional HD sound with HDSP
• DECT high security standard STEP B
• Security: TLS, SRTP, SIPS, HTTPS
• Easy setup and configuration
• LDAP(S) Directories (up to 10)
• XML Directories
• Auto-provisioning
• IPUI based handset registration
• Sync over the air (DECT) and Sync over LAN (PTPv2), also mixed
• Firmware update, file based, scheduled
• SUOTA (Push)
• Alarm messaging and Location with external alarm servers
• CrewPTT

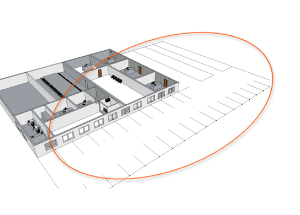

Base indoor / antenna outdoor

• Base installed inside building
• Building structure blocks DECT signal
• Coverage outside (parking) area
• Cooling storages (Base outside)

Flexible placement of base

• Hide DECT base station and install third party antenna
• Protect against Vandalism
• Distance to LAN connection
• Antenna orientation independent of mounting

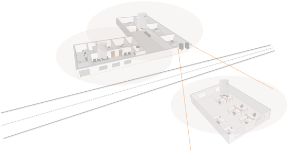

Directional

• Enlarge coverage in a given direction
• Areas between buildings

Interior design

• Customer does not want to see Base stations
• Design antennas mounted in ceiling
