FAQ N530 - Select Line for outgoing call

Introduction

From software 2.68 or higher we have implemented the option to select the outgoing line (Only if more then 1 outgoing line is available)

Also valid for N610/N670 when internal telephony is enabled.

Information

To activate this feature on existing environments handset re-registration is required!

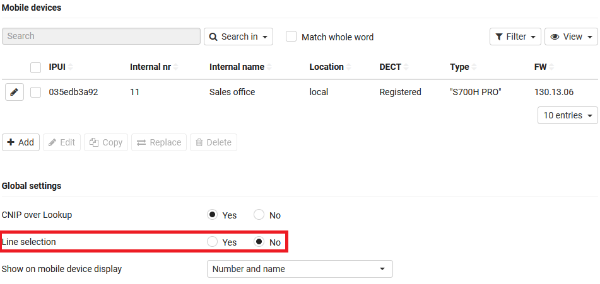

To be able to use this feature you need to enable this via:

Mobile devices - Line selection

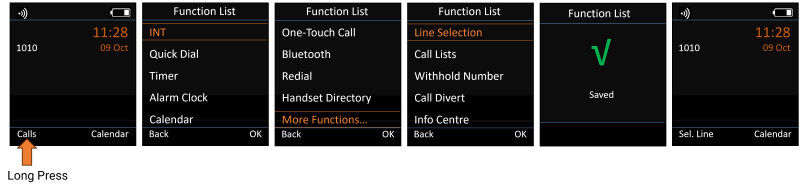

Softkey Sel. Line

Select Line via pressing the Softkey "Sel. Line"

  • Long press on the required Softkey
  • Select More Functions...
  • Select Line Selection
  • Press OK to save



  • Press Sel.Line
  • Select the required outgoing Line
  • Enter the number


You can also select the line via Long press via the Send key



Possibility to select line before call by press "longpress" in cases described above:

  • redial list
  • calls list
  • dial keypad
  • directory
  • XHTML

Auto-provisioning

<?xml version="1.0" encoding="UTF-8"?>
<provisioning version="1.1" productID="e2">
   <nvm>
       <param name="DmGlobal.0.LineSelection" value="0" />

   </nvm>
</provisioning>
