FAQ - Auto provisioning: Nested profiles

Valid for:

N530

N610

N670

N770

N870

N870E

Embedded Integrator

Virtual Integrator

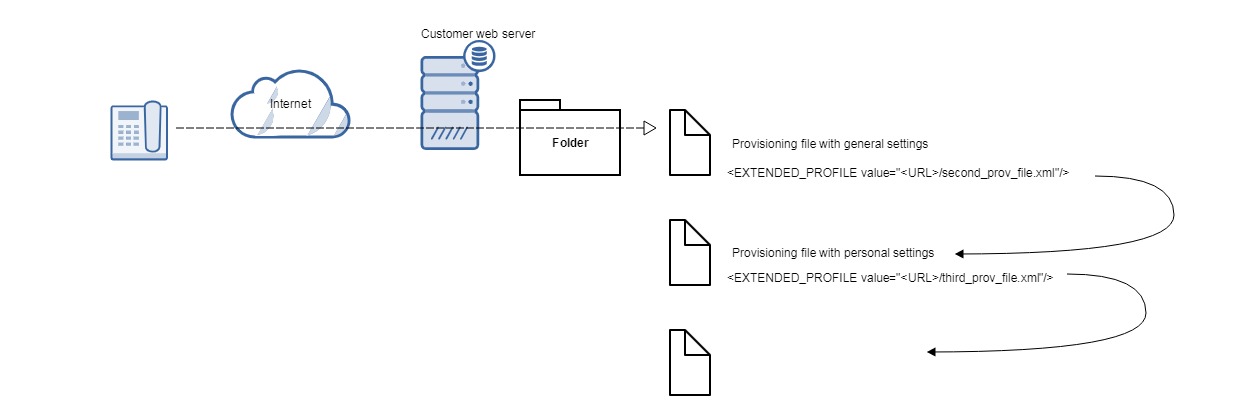

Introduction

In some situations you would like to have the possibility to load multiple provisioning files.

First file with general settings
Second file with device specific settings
If required more files then 2 can be used

Auto-provisioning

The device receives an provisioning URL to download the first file.

Example provisioning file with general settings.

<?xml version="1.0" encoding="UTF-8"?>
<provisioning version="1.1" productID="e2">

<nvm>

           <param name="SipProvider.0.Name" value="PBX"/>



           <param name="SipProvider.0.Domain" value="192.168.178.210"/>
           <param name="SipProvider.0.ProxyServerAddress" value="192.168.178.210"/>
           <param name="SipProvider.0.ProxyServerPort" value="5060"/>
           <param name="SipProvider.0.RegServerAddress" value="192.168.178.210"/>
           <param name="SipProvider.0.RegServerPort" value="5060"/>
           <param name="SipProvider.0.RegServerRefreshTimer" value="180"/>
           <param name="SipProvider.0.TransportProtocol" value="2"/>
           <param name="SipProvider.0.UseSIPS" value="0"/>
           <param name="SipProvider.0.SRTP_Enabled" value="0"/>
           <param name="SipProvider.0.AcceptNonSRTPCalls" value="0"/>

</nvm>

<EXTENDED_PROFILE class="string" value="http://192.168.178.201/nestedprofile/test_second.xml"/>

</provisioning>

The Parameter:<EXTENDED_PROFILE class="string" value="http://192.168.178.201/nestedprofile/test_second.xml"/>Contains the URL to the second provisioning file.

URL can contain:

Name of the file (Example: test_second.xml)
%MACD.xml (%MACD will be replaced with own MAC address)

Example for the second provisioning file

<?xml version="1.0" encoding="UTF-8"?>
<provisioning version="1.1" productID="e2">

<nvm>


       <oper value="029e74a599" name="add_hs">
           <param name="hs.RegStatus" value="ToReg"/>
       </oper>

           <param name="SipAccount.029e74a599.AuthName" value="1024" />
           <param name="SipAccount.029e74a599.AuthPassword" value="p?t_JrH1nz1zrNZE" />
           <param name="SipAccount.029e74a599.UserName" value="1024" />
           <param name="SipAccount.029e74a599.DisplayName" value="N670 1024" />
           <param name="SipAccount.029e74a599.ProviderId" value="0" />
           <param name="hs.029e74a599.DirectAccessDir" value="250" />
           <param name="hs.029e74a599.DECT_AC" value="0000" />
           <param name="hs.029e74a599.IntKeyDir" value="252"/>

</nvm>



</provisioning>
