FAQ - Auto provisioning: Start DECT registration

Valid for:

N530

N610

N670

N770

N870

N870E

Embedded Integrator

Virtual Integrator

Introduction

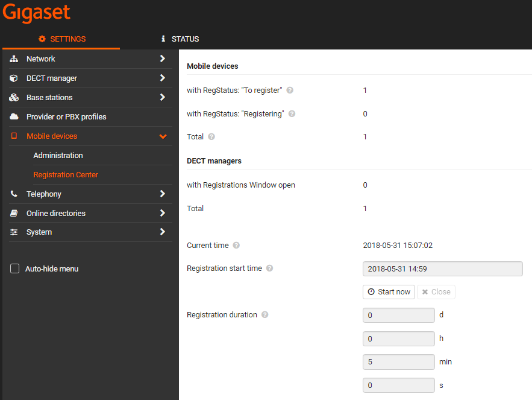

This page describes how to start the DECT registration window via auto-provisioning.

Web-interface



Auto-provisioning

Parameter

Description

update_dm

Procedure updating existing Dect Manager entry. Attribute of XML Oper, value is required as a parameter of updateDectManager operation.
Where value is treated as Identifier of the Dect Manager. (Name)

If you do not know the name or would to address all DECT managers behind an Integrator you can use the @ Sign.

RegStart

Registration start time: must be typed as UNIX timestamp.

RegDuration

Time period in seconds.

DMPpasswd

DECT Manager Password

Example:

Start time 31-May-2018 14:59

Duration 300 seconds.

Password DECT manager: Gigaset

Information

<!-- If you do not know the DECT manager name or you are using an Integrator you can use the @ sign to address all DECT managers
Example: <oper name="update_dm" value="@" > -->

<oper name="update_dm" value="local" >

<param name="RegStart" value="1527771540" />
 <param name="RegDuration" value="300" />

</oper>

If the start-time time is in the past and the end-time (Start time + Duration) is not passed then the registration window is still open.


Information
Important

Please add this code to the end of the Provisioning template, else you will get error message that provisioning failed.

Information

<oper name="update_dm" value="local" >

<!-- If RegStart value = 1 then Registration starts now. You do not need to calculate the UNIX time stamp -->

<param name="RegStart" value="1" />
 <param name="RegDuration" value="300" />

</oper>

Information

<oper name="update_dm" value="local" >

<!-- Below an example how to configure the firmware update URL -->

<param name="FwUpdateUrl" value="http://192.168.178.200/firmware/n870/N870-V2.20.0.update.bin" />

<param name="FwUpdateStart" value="Epoch time" />

<!-- Value for this parameter is Epoch time so i.e. 2019-01-18 15:27:00 is 1547821560. It's for local time not GMT. -->

</oper>
