FAQ - Medium size system
Valid for: |
|
| N670 | N770 | N870 | N870E | Embedded Integrator | Virtual Integrator |
System overview

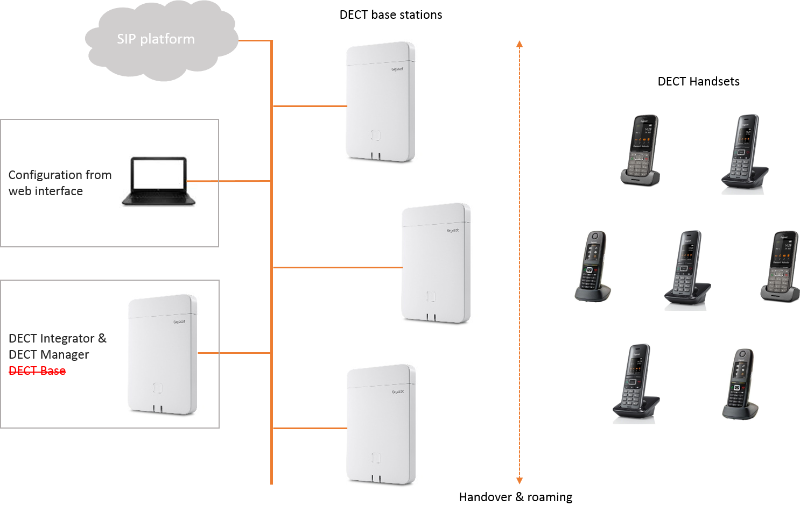

An N870 Medium sized system is described below.
Minimum Size | Maximum Size | |
|---|---|---|
DECT Integrator & DECT Manager | 1 | 1 |
Additional DECT Base | 1 | 60 |
DECT Handsets | * | 250 |
Max. Parallel calls | 5 - 10 | 60 |
Connection capacity | ||
|---|---|---|
Enabled codecs | INT + DM | Base only |
G.711 only | 0 | 10 |
G.729 & G.711 | 0 | 8 |
G.722 & G.729 & G.711 | 0 | 5 |
* = Number of handsets is based on the required traffic volume (Erlang E), we recommend to use maximum 20 DECT handsets per DECT base.
