FAQ - Small size system

Valid for:

N530

N610

N670

N770

N870

N870E

Embedded Integrator

Virtual Integrator

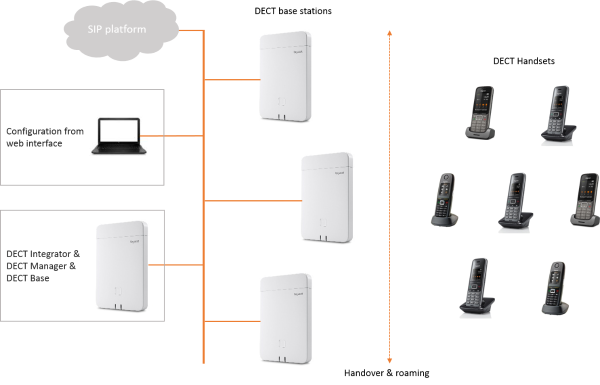

System overview

An small sized system is described below.


Minimum Size

Maximum Size

DECT Integrator &

DECT Manager &

DECT Base

1

1

Additional DECT Base

0

9 (1 - 9)

DECT Handsets

*

50

Max. Simultaneous calls for the whole system

8

(There is no additional DECT base connected)

20





Simultaneous calls per device in a system with one or more additional DECT bases.

(Max. Simultaneous calls (20) for the whole system like described above)

Enabled codecs

Device role

INT + DM + Base

Base only

G.711 only

5

10

G.729 & G.711

5

8

G.722 & G.729 & G.711

5

5






* = Number of handsets is based on the required traffic volume (Erlang E).


Information
Recommendation maximum number of handsets.

On the DECT side there are also limitations based on number of DECT channels, signalling,...

We recommend to use maximum 20 DECT handsets per DECT base, more is surely possible but 20 is a realistic number.
