FAQ - Tel.search.ch phonebook

Valid for:

N530

N610

N670

N770

N870

N870E

Embedded Integrator

Virtual Integrator

Introduction

tel.search.ch is an up-to-date, fast and free phone-book for Switzerland.

This phone-book can be used with:

  • N510
  • N720
  • N670
  • N870
  • Maxwell desktop phones

The N510 and N720 have a switch in the web-interface to enable this phone-book, in the other devices you need to configure this manually or via auto-provisioning.

N670/N870 configuration example

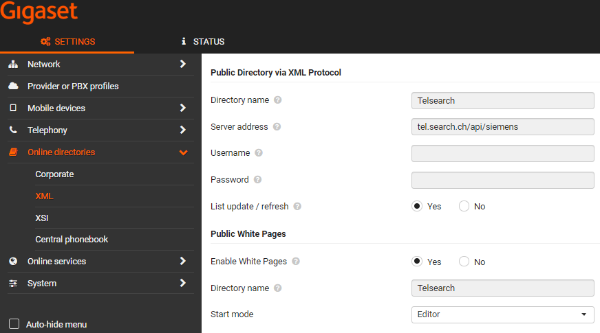

Open the web-interface and go to: SETTINGS - Online directories - XML -Public

Configure the Public White pages using the settings described below.

  • Directory name: Telsearch
  • Server address: tel.search.ch/api/siemens
  • List update / refresh: Yes
  • Enable White pages: Yes
  • Directory name: Telsearch
  • Start mode: Editor



Enable Automatic look-up for the DECT handsets

Go to: SETTINGS - Mobile devices - Administration - Edit handset - Automatic look-up

Change to: Public White Pages (XML)



Auto-provisioning

You can download the provisioning file and upload via the web-interface (SETTINGS - System - Provisioning and configuration).


Information
provisioning file

<?xml version="1.0" encoding="UTF-8"?>
<provisioning version="1.1" productID="e2">

<nvm>

<!-- tel search phonebook -->
<param name="XMLDir.0.ProviderName" value="Telsearch" />
<param name="XMLDir.0.ServerURL" value="tel.search.ch/api/siemens" />
<param name="XMLDir.0.EntCount" value="0" />
<param name="Netdir.4.Activated" value="1" />
<param name="XMLDir.0.WhitePagesDirName" value="Telsearch" />
<param name="XMLDir.0.StartWithListWP" value="0" />
<param name="hs.@.AutoLookupDir" value="40" />

</nvm>
</provisioning>
