Huber+Suhner - Antennas

Third party antennas

Instead of the Gigaset external antennas, you can connect also third party antennas. Below are the HUBER+SUHNER antennas.

Gigaset does not sell these antennas !!!

Always replace both Gigaset antennas with the same external third party antennas, only then the optimum DECT quality is obtained. Some antennas mentioned below have one connector, this means that you need to buy 2 antennas.

Connect both external antennas to maintain antenna diversity
The antennas should be of the same type
Keep at least 30 cm between the antennas
Place both antennas in the same area. One inside and one outside is not supported
Antenna cables should be of the same type and length, keep the length as short as possible
Every meter of cable will be … dB gain loss (depends on the used cable)

Vendor	HUBER+SUHNER Antenna	Characteristic

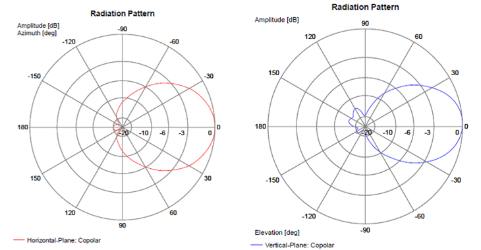

HUBER+SUHNER	SENCITY® Spot-S Railway Cellular Antenna 1318.17.0015	Frequency range (MHz): 1755 - 1910 Input impedance (Ω): 50 V.S.W.R: ≤ 1.5 3dB beam width (v) (°): 70 Gain (dB): 8 Polarization type: Vertical Max. input power (W): 50 DC grounded: no Connector: N-jack female

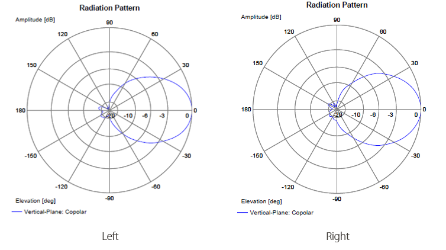

HUBER+SUHNER	SENCITY® Spot-S indoor Antenna 1319.26.0027	Frequency range (MHz): 1880 - 1930 Input impedance (Ω): 50 3dB beam width (v) (°): 75 Gain (dB): 8 Polarization (°): +/- 45 Max. input power (W): 10 DC grounded: no Connector: 2 x SMA-jack female

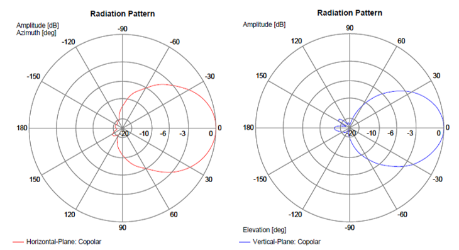

HUBER+SUHNER	SENCITY® Spot-S indoor Antenna 1319.19.0003	Frequency range (MHz): 1850 - 1990 Input impedance (Ω): 50 3dB beam width (v) (°): 65 Gain (dB): 8 Polarization type: Vertical Max. input power (W): 10 DC grounded: no Connector: SMA-jack female

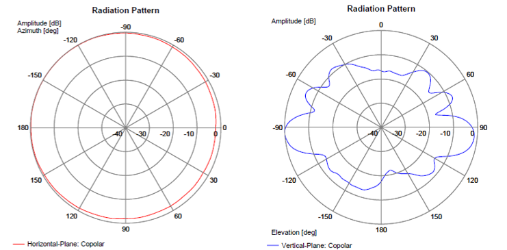

HUBER+SUHNER	SENCITY Omni-L DECT Antenna 1319.17.0121	Frequency range (MHz): 1880 - 1930 Input impedance (Ω): 50 V.S.W.R: ≤ 1.5 Gain (dB): 7 Polarization type: Vertical Max. input power (W): 25 DC grounded: yes Connector: N-jack female
