SmauInstead of the Gigaset external antennas, you can connect also third party antennas. Below are the Microset antennas.


Gigaset does not sell these antennas !!!


Information

Always replace both Gigaset antennas with the same external third party antennas, only then the optimum DECT quality is obtained.  Some antennas mentioned below have one connector, this means that you need to buy 2 antennas.


  • Connect both external antennas to maintain antenna diversity
  • The antennas should be of the same type
  • Keep at least 30 cm between the antennas
  • Place both antennas in the same area. One inside and one outside is not supported
  • Antenna cables should be of the same type and length, keep the length as short as possible
  • Every meter of cable will be … dB gain loss (depends on the used cable)


Microset Antenna

Characteristic

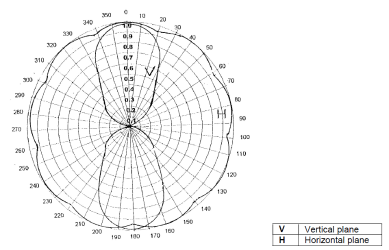

Diagram

Frequency range (MHz): 1700- 2200
Input impedance (Ω): 50
V.S.W.R: ≤ 1.5
Gain (dB): 12
Polarization type: Vertical
Connector: TNC female              Environment: Internal


Frequency range (MHz): 1700- 2200
Input impedance (Ω): 50
V.S.W.R: ≤ 1.5
Gain (dB): 12
Polarization type: Vertical
Connector: TNC female              Environment: External, cold rooms


Frequency range (MHz): 1700- 2200
Input impedance (Ω): 50
V.S.W.R: ≤ 1.5
Gain (dB): 8
Polarization type: Vertical
Connector: TNC female              Environment: Internal (ceiling mounting)


Frequency range (MHz): 1700- 2200
Input impedance (Ω): 50
V.S.W.R: ≤ 1.5
Gain (dB): 14
Polarization type: Vertical
Connector: TNC female              Environment: Internal or External


Frequency range (MHz): 1700- 2200
Input impedance (Ω): 50
V.S.W.R: ≤ 1.5
Gain (dB): 14
Polarization type: Vertical
Connector: TNC female              Environment: Internal or External


Frequency range (MHz): 1700- 2200
Input impedance (Ω): 50
V.S.W.R: ≤ 1.8
Gain (dB): 6
Polarization type: Vertical
Connector: TNC female              Environment: External


Coax extension cable of 1m: COAX1

Product code: 4041527                  Connectors: TNC male / TNC male


Coax extension cable of 5m: COAX5

Product code: 4041526                      Connectors: TNC male / TNC male


Coax extension cable of 10m: COAX10

Product code: 4041483                      Connectors: TNC male / TNC male
